6U VPX TI Dual DSP (6678) Board
Phantom series 6U VPX TI Dual DSP (6678) SBC is a rugged 6U VPX board that incorporates two Texas Instruments TMS320C6678 multi-core DSP processors. It is optimized for signal processing tasks in defense systems, offering significant computational power for applications like electronic warfare, software-defined radio, and sensor processing. The board is built to perform in extreme temperature and shock conditions, making it suitable for deployment in the field.
High Speed VPX SBC for Defense
Key Features
Two TI TMS320C6678 DSPs (8 cores @ 1.25 GHz each) for parallel signal processing
Onboard FPGA for high-speed I/O and glue logic
1 GB DDR3 ECC SDRAM per DSP (2 GB total)
Serial RapidIO and PCIe links for inter-processor and backplane communication
10 Gigabit Ethernet and Gigabit Ethernet interfaces on VPX backplane
Onboard NAND Flash for data and boot storage
Conduction-cooled design for operation from -40 °C to +85 °C
Supports TI real-time OS (SYS/BIOS) and Linux BSP
Specifications
Processor & Chipset: 4 × TI TMS320C6678 DSPs (8 cores @ 1.25 GHz each); on-board SRIO/PCIe switch fabric2 × TI TMS320C6678 DSPs (8 cores each) with SRIO/PCIe switch fabric
Memory: 2 GB DDR3 ECC SDRAM (1 GB per DSP); onboard Flash memory for boot; NAND Flash for data
I/O Interfaces: 10G Ethernet to backplane; 1G Ethernet to backplane; Serial RapidIO links; PCIe connections; GPIO lines via FPGA
Expansion Slots: N/A (dedicated DSP board)
Storage: Onboard NAND Flash for mission data; SPI Flash for boot loader
Environmental: Conduction-cooled (-40 °C to +85 °C); designed to MIL-STD-810 environmental standards
Compliance: OpenVPX VITA 65 compliant (DSP module profile)
Application Areas
Radar, sonar, and electronic warfare signal processing
Real-time image and sensor data processing for ISR systems
High-speed data streaming and analysis in mission systems
Related Products

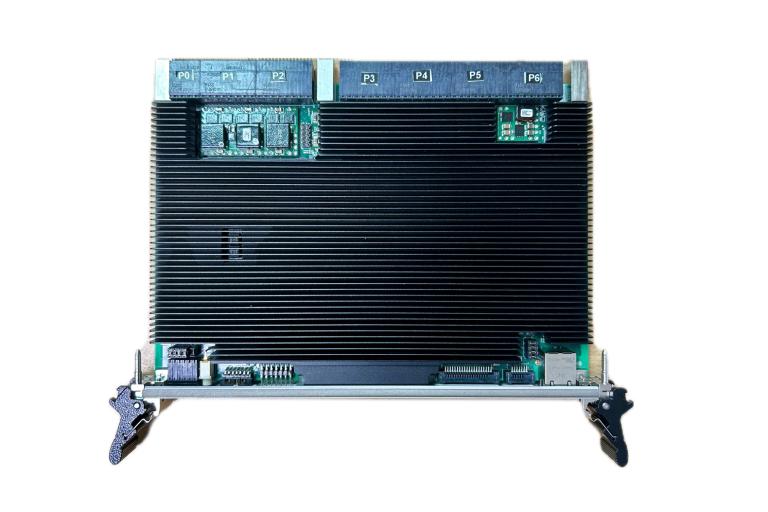

6U VPX TI Quad DSP (6678) Board
Phantom series 6U VPX TI Quad DSP (6678) SBC is a rugged signal processing board featuring four Texas Instruments TMS320C6678 multi-core DSPs.

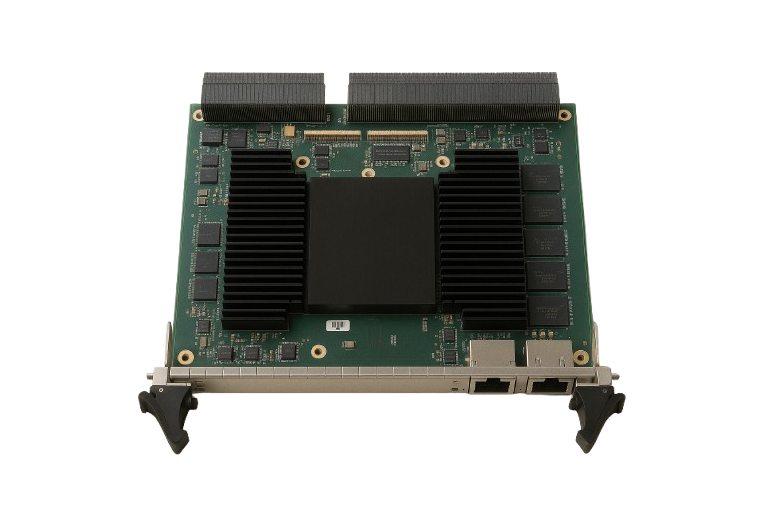

6U VPX TI Penta DSP (6678) Board
