3U VPX Intel® Xeon W SBC
Viking series 3U VPX Intel® Xeon W SBC is a rugged board based on the Intel® Xeon W processor. It is designed for high-performance embedded computing in harsh environments, providing reliable operation for mission-critical defense and aerospace applications.
Rugged SOSA™ Aligned SBC for Defense & Aerospace
Key Features
8-core Intel® Xeon® W-11000E Series (11th Gen Tiger Lake-H) processor for high performance
Up to 64 GB DDR4 ECC memory (soldered)
Dual 10 Gigabit Ethernet (10GBASE-KR) and dual 1 Gigabit Ethernet for backplane networking
PCIe Gen4 fabric links for high-bandwidth data transfer
XMC expansion site (PCIe Gen4 x8) for additional payload modules
Front I/O: USB 2.0/3.0, DisplayPort++, and serial ports
Conduction-cooled and air-cooled configurations available
Supports multiple operating systems/BSPs (e.g., Linux, Windows, VxWorks)
Specifications
Processor & Chipset: Intel® Xeon® W-11000E CPU (8 cores, 11th Gen) with Intel 500-series chipset
Memory: Up to 64 GB DDR4-2933 ECC SDRAM (soldered)
I/O Interfaces: Two 10G Ethernet ports (backplane), two 1G Ethernet (backplane); USB 3.2 and 2.0; serial UART; DisplayPort video out
Expansion Slots: 1 × XMC site (PCIe Gen4 x8) for mezzanine modules
Storage: NVMe SSD support via M.2; onboard SATA Flash for OS/boot
Video/Audio: DisplayPort 1.4 on front panel for video output
Environmental: Conduction-cooled or air-cooled build; operating temperature -40 °C to +85 °C; designed to meet MIL-STD-810 environmental standards
Compliance: VITA 46/65 OpenVPX, SOSA-aligned
Application Areas
Mission computing for ground vehicles, naval systems, and airborne platforms
High-performance embedded computing for C4ISR and situational awareness systems
Computing engine for radar, sonar, and electronic warfare signal processing
Related Products
6U VPX Intel® Xeon W SBC
Viking series 6U VPX Intel® Xeon W SBC is a rugged board based on the Intel® Xeon® W-11000E Series processor for general-purpose mission computing.
6U VPX Intel® Xeon D SBC
Viking series 6U VPX Intel® Xeon D SBC is a rugged board based on the Intel® Xeon® D multi-core processor.

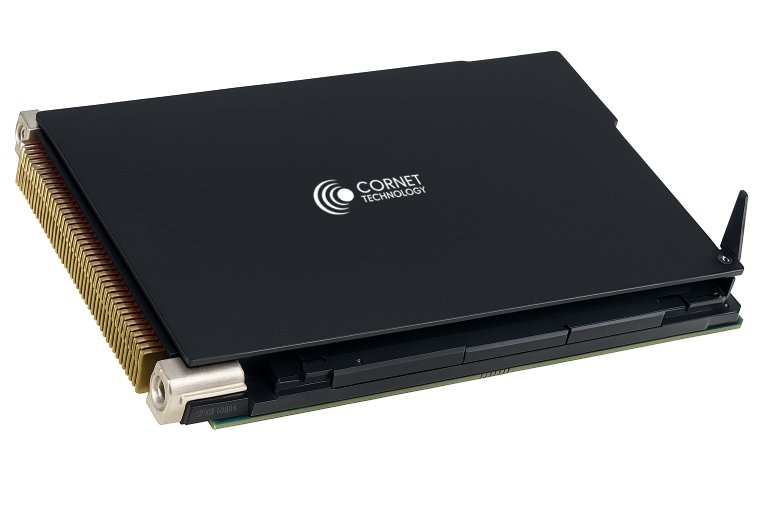

3U VPX Intel® Core i7 (11th Gen) SBC
