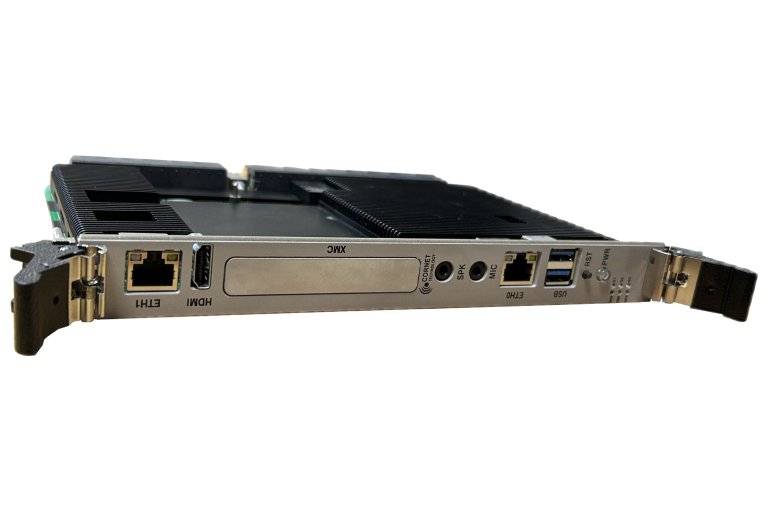

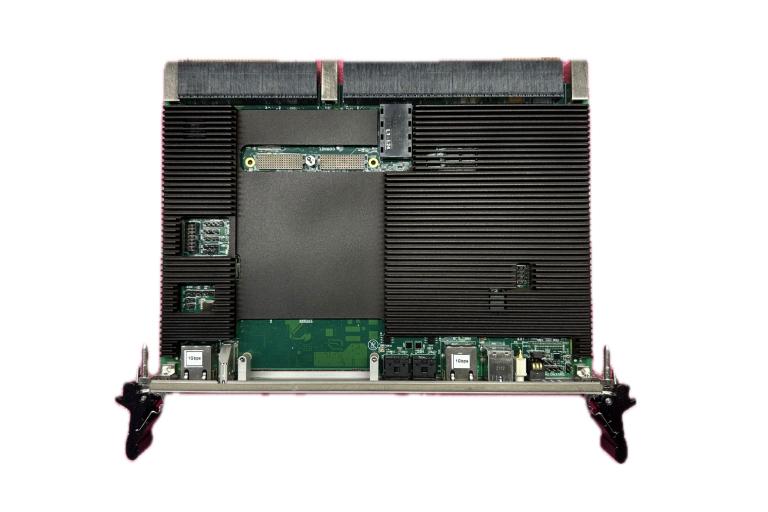

6U VPX Intel® Xeon D SBC
Viking series 6U VPX Intel® Xeon D SBC is a rugged board based on the Intel® Xeon® D multi-core processor. It provides server-class computing performance on a VPX platform, ideal for networking and data processing in defense systems. Designed for extended temperature and vibration, it reliably powers mission-critical applications in harsh aerospace and ground environments.
Rugged SOSA™ Aligned SBC for Defense & Aerospace
Key Features
Intel® Xeon® D-1500 family server-grade SoC (up to 12 cores)
Up to 32 GB DDR4 ECC memory
Multiple 10 Gigabit and Gigabit Ethernet interfaces (VITA 46.11 management support)
High-bandwidth PCIe fabric connectivity for data plane
XMC/PMC mezzanine site for I/O expansion
On-board SATA SSD and support for removable storage
VITA 48/REDI conduction-cooled design and air-cooled variant available
Supports multiple operating systems/BSPs (e.g., Linux, VxWorks)
Specifications
Processor & Chipset: Intel® Xeon® D series processor (multicore SoC, up to 12 cores)
Memory: Up to 32 GB DDR4 ECC SDRAM
I/O Interfaces: 10G Ethernet interfaces on VPX backplane; 1G Ethernet ports; IPMI support for system management; USB 2.0; serial ports
Expansion Slots: 1 × XMC/PMC mezzanine site (PCIe Gen3 x8)
Storage: Onboard SATA SSD (ruggedized); SATA ports for additional storage; optional removable SSD module
Environmental: Conduction-cooled for -40 °C to +85 °C operation; designed to MIL-STD-810 for ruggedness
Compliance: VITA 46 OpenVPX compliant profile
Application Areas
Mission computing for ground vehicles, naval systems, and airborne platforms
High-performance embedded computing for C4ISR and situational awareness systems
Computing engine for radar, sonar, and electronic warfare signal processing
Related Products
6U VPX Intel® Xeon W SBC
Viking series 6U VPX Intel® Xeon W SBC is a rugged board based on the Intel® Xeon® W-11000E Series processor for general-purpose mission computing.

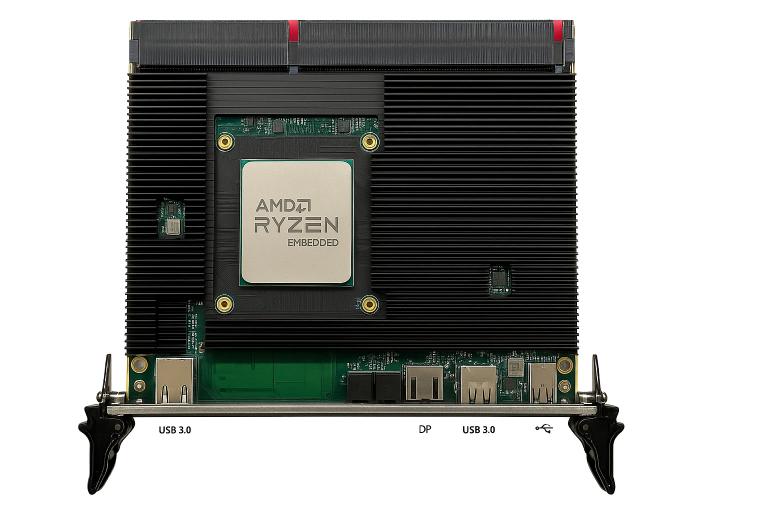

6U VPX AMD Ryzen V3000 SBC
