6U VPX Intel® Core i7 (11th Gen) SBC
Viking series 6U VPX Intel® Core i7 (11th Gen) SBC is a rugged board based on the 11th Generation Intel® Core™ i7 processor. It delivers high-performance computing in a 6U VPX form factor for mission applications. This SBC is suitable for harsh environments and provides advanced processing and graphics capabilities for defense systems requiring intensive data and video processing.
Rugged SOSA™ Aligned SBC for Defense & Aerospace
Key Features
11th Gen Intel® Core™ i7-1185GRE processor (4 cores, 8 threads)
Up to 16 GB DDR4 ECC memory (dual-channel)
Dual 10 Gigabit Ethernet (backplane) and multiple 1 Gigabit Ethernet ports for control
PCIe Gen3 backplane interfaces for high-speed interconnects
XMC expansion site for additional I/O or coprocessing modules
On-board NVMe SSD storage and SATA Flash for OS
Integrated Intel Iris Xe graphics (Gen12) for GPGPU and video acceleration
Air-cooled and conduction-cooled versions available (-40 °C to +85 °C)
Supports multiple operating systems/BSPs (e.g., Linux, VxWorks)
Specifications
Processor & Chipset: Intel® Core™ i7-1185GRE CPU (4-core, 11th Gen Tiger Lake) with integrated PCH
Memory: 16 GB DDR4 ECC SDRAM (soldered)
I/O Interfaces: 2 × 10G Ethernet (backplane), 2 × 1G Ethernet; USB 3.0/2.0; serial ports; GPIO lines to backplane
Expansion Slots: 1 × XMC site (PCIe x8) for mezzanine module
Storage: Onboard NVMe SSD (up to 1 TB); 64 GB SATA Flash; SD card slot
Video/Audio: Integrated Intel Iris Xe GPU (DisplayPort output via front panel on air-cooled variant)
Environmental: Operating temperature -40 °C to +85 °C (conduction-cooled); shock and vibration per MIL-STD-810
Compliance: VITA 46/65 OpenVPX compliant
Application Areas
Mission computing for ground vehicles, naval systems, and airborne platforms
High-performance embedded computing for C4ISR and situational awareness systems
Computing engine for radar, sonar, and electronic warfare signal processing
Related Products

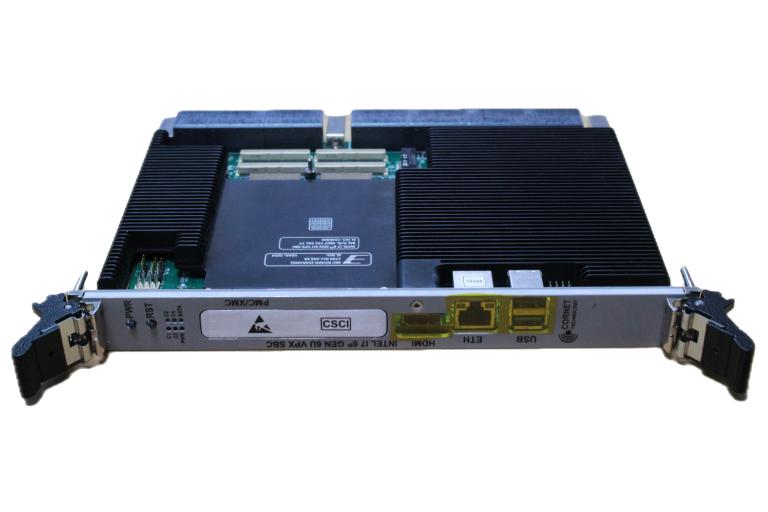

6U VPX Intel® Core i7 (6th Gen) SBC
