6U VPX NXP QorIQ T4241 SBC
Phantom series 6U VPX NXP QorIQ T4241 SBC is a rugged 6U VPX single-board computer featuring a 12-core NXP QorIQ T4241 processor. It’s designed to handle intensive signal processing and networking tasks in defense systems. This SBC integrates a high-speed fabric and FPGA co processing, making it suitable for radar, communications, and electronic warfare applications in harsh environments.
Rugged VPX SBC for Defense & Avionics
Key Features
NXP QorIQ T4241 processor (12 PowerPC e6500 cores @ 1.8 GHz, AltiVec SIMD)
12 GB DDR3L ECC SDRAM for ample high-speed memory
Xilinx Kintex-7 FPGA and Spartan-6 FPGA onboard for I/O offload and custom processing - PCIe Gen3 fabric (five x4 PCIe interfaces) and SRIO support for inter-module communication
Dual 10-Gigabit Ethernet (XAUI) and triple Gigabit Ethernet to VPX backplane
32 discrete GPIO lines via FPGA (16 in/16 out)
Audio input/output channels to backplane, multiple USB 2.0 ports
Onboard NAND Flash (8 GB + 32 GB) and microSD slot for storage
Available in rugged air-cooled and conduction-cooled versions
Supports multiple operating systems/BSPs (Linux, VxWorks)
Specifications
Processor & Chipset: NXP QorIQ T4241 12-core processor (PowerPC e6500 cores @ 1.8 GHz) with integrated memory controller; onboard PCIe/SRIO switch
Memory: 12 GB DDR3L ECC SDRAM; 256 MB NOR Flash; 8 GB + 32 GB NAND Flash; 4 Mb MRAM
I/O Interfaces: 22 × 10G Ethernet (XAUI) to VPX backplane; 3 × 1G Ethernet (1000BASE-T) to backplane; 5 × PCIe x4 links to backplane; 32 × GPIO via FPGA; 2 × USB 2.0; audio line in/out
Expansion Slots: No front mezzanine (resources allocated to onboard FPGA and bridge)
Storage: Onboard NAND Flash (boot and user storage); MicroSD card slot
Environmental: Operating temperature -20 °C to +55 °C (standard); conduction-cooled option for extended range; built to MIL-STD-810 for shock, vibration
Compliance: VITA 46/65 OpenVPX compliant
Application Areas
Sensor fusion and signal processing in radar/sonar systems
Network-centric and communication systems in defense platforms
Electronic warfare and signals intelligence (SIGINT) applications
Related Products

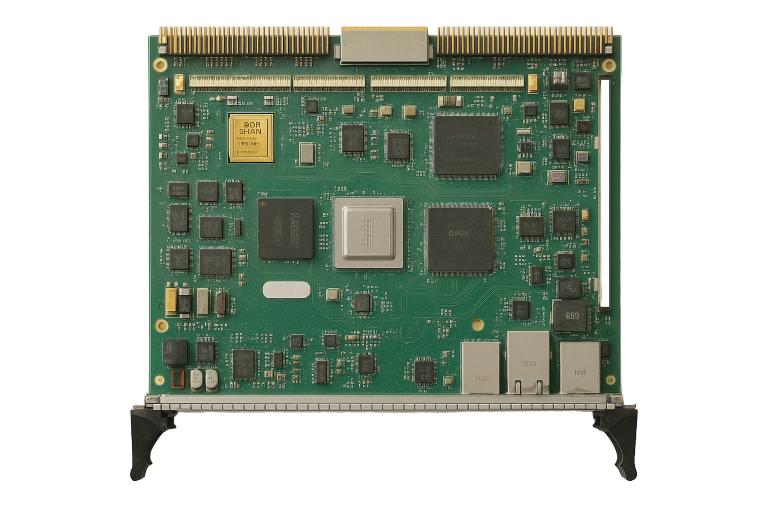

6U VME Single PowerPC Freescale MPC7410
Phantom series 6U VME Single PowerPC Freescale MPC7410 SBC is a rugged VME board featuring a single PowerPC G4 MPC7410 processor.

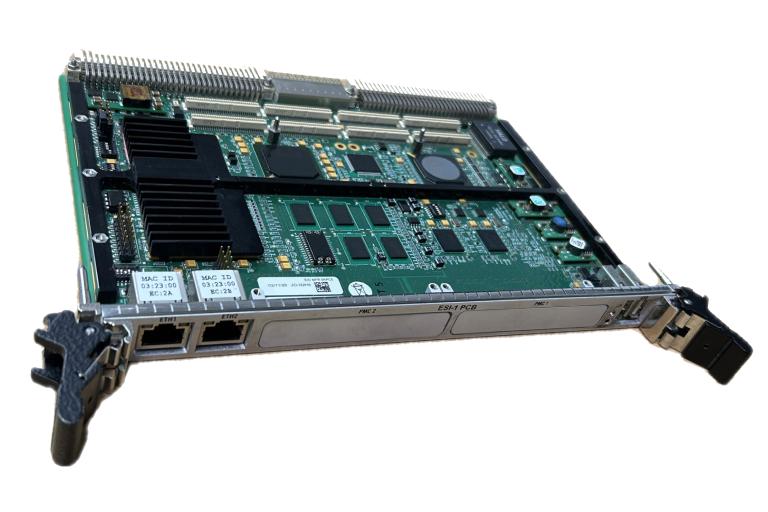

6U VME Single PowerPc Freescale MPC7448 SBC
Phantom series 6U VME Single PowerPC Freescale MPC7448 SBC is a rugged VME single-board computer based on the PowerPC MPC7448 processor.

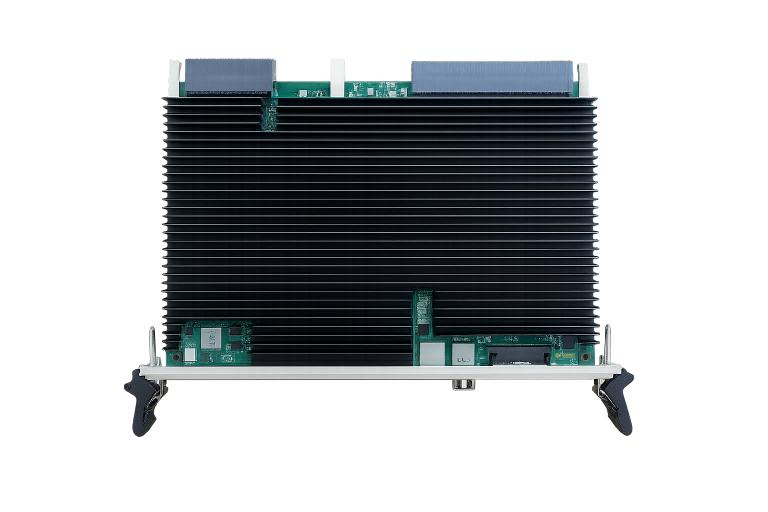

6U VPX “ESM” NXP QorIQ T4241 Processor Board
