6U VME Single PowerPc Freescale MPC7410
Phantom series 6U VME Single PowerPC Freescale MPC7410 SBC is a rugged VME board featuring a single PowerPC G4 MPC7410 processor. It offers reliable computing for legacy defense systems, providing an upgrade path with improved performance and lower power. Designed to operate in extreme conditions, it supports real-time applications and control tasks in VME-based platforms.
VME SBC for Defense & Avionics
Key Features
Freescale PowerPC MPC7410 G4 processor (single CPU) at up to 500 MHz
Up to 512 MB SDRAM with ECC support
64-bit VME64x bus interface with DMA support
Dual Ethernet interfaces for network connectivity
On-board Flash memory for bootloader and OS storage
Air-cooled build with optional conduction-cooled variant
Legacy I/O: serial ports, PMC expansion slot for custom I/O
Supports real-time operating systems (e.g., VxWorks) and Linux BSP
Specifications
Processor & Chipset: Freescale PowerPC MPC7410 CPU (RISC G4 core, 500 MHz) with integrated memory controller
Memory: 512 MB SDRAM with ECC; 64 MB Flash ROM
I/O Interfaces: 10/100 Ethernet port; RS-232 serial ports; discrete I/O lines via P2 connector
Expansion Slots: 1 × PMC slot (PCI mezzanine) for additional I/O or graphics
Storage: Onboard Flash for boot; SCSI or PATA interface for external drive (via P2)
Environmental: Air-cooled 0 °C to +55 °C (conduction-cooled version -40 °C to +71 °C); designed to MIL STD-810 shock/vibe standards
Compliance: VITA 1 VMEbus (VME64x) compliant
Application Areas
Legacy VME-based avionics and mission computers in military aircraft
Upgrade programs for naval and ground vehicle VME computer systems
Real-time control systems and data processing in older defense platforms requiring extended support
Related Products
6U VME Single PowerPc Freescale MPC7448 SBC
Phantom series 6U VME Single PowerPC Freescale MPC7448 SBC is a rugged VME single-board computer based on the PowerPC MPC7448 processor.

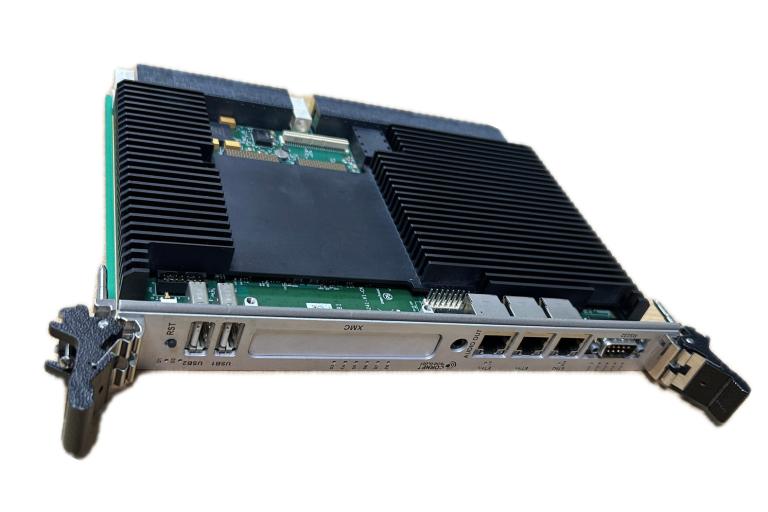

6U VPX NXP QorIQ T4241 SBC
